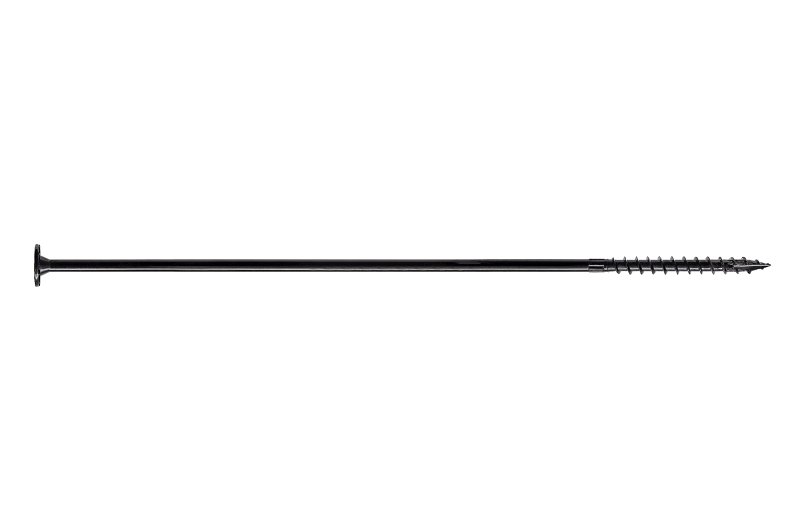

Simpson Strong-Tie SDWS SDWS221200-RP1 Timber Screw, 12 in L, Serrated Thread, Low-Profile Head, 6-Lobe Drive

Simpson Strong-Tie

$2.79~~$2.79~~

Applicable Materials: Wood
Color: Black
Drive Size: T40
Drive Type: 6-Lobe
Finish: E-Coat
Model #: SDWS221200-RP1
UPC #: 707392133889
SKU: 7501505

Your shopping list will be used for pickup in-store

Product Details

The Strong-Drive® SDWS timber (interior-grade) screw formerly, the SDWS log screw is a structural wood screw available in a variety of lengths and is designed for cross-laminated timber assemblies, mass timber construction, log-home construction, ledgers and general interior applications. These 0.195 and 0.22 in Dia structural fasteners require less torque to install than comparable fasteners and the large diameter washer head pulls members down easily, eliminating the need to use extra washers. It is code listed under IAPM-UES ER-192 and meets 2015 and 2018 IRC® and IBC® code requirements for several common wood framing applications.

Key Features

SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for pre-drilling in most applications
Serrated thread reduces splitting and damage
Low-profile, large diameter washer head with nibs provides maximum bearing area and makes countersinking easy
Six-lobe, T40 drive provides positive engagement that makes the screw easy-to-drive and improves bit life (replacement driver bit BIT40T-134)
Size identification on all Simpson Strong-Tie® screws

Item Specifications

Applicable Materials	Wood
Color	Black
Drive Size	T40
Drive Type	6-Lobe
Finish	E-Coat
Head Type	Low-Profile

Includes	BIT40T-134 Replacement Driver Bit
Length	12
Point Type	Saw Tooth
Thread Length	2-3/4 in
Thread Type	Serrated

MORE DETAILS:

Simpson%20Strong-Tie%202024%20Catalog.pdf
Application: For testing in a variety of mass timber applications is underway and surface splines, lap joints, timber framing, ledgers, log-home construction and general interior applications
Warranty: Limited
