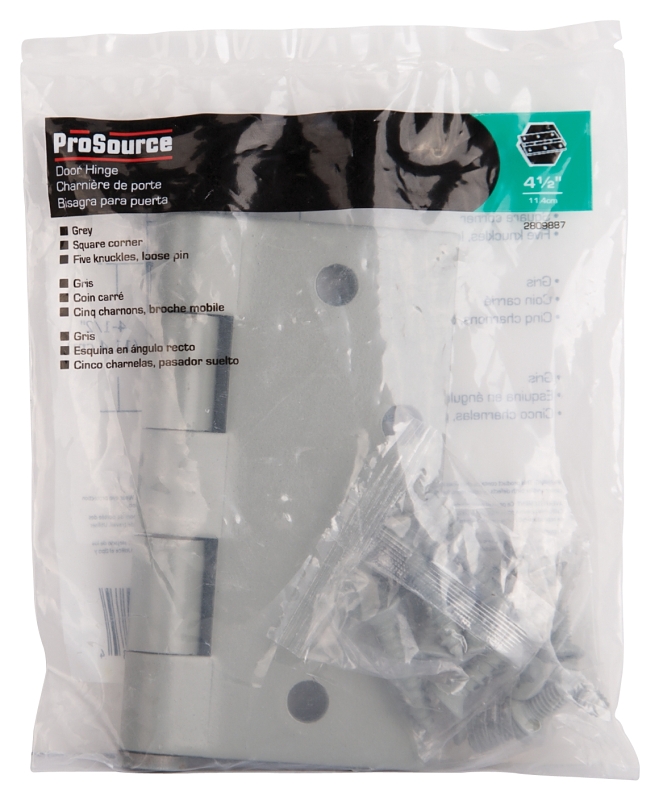

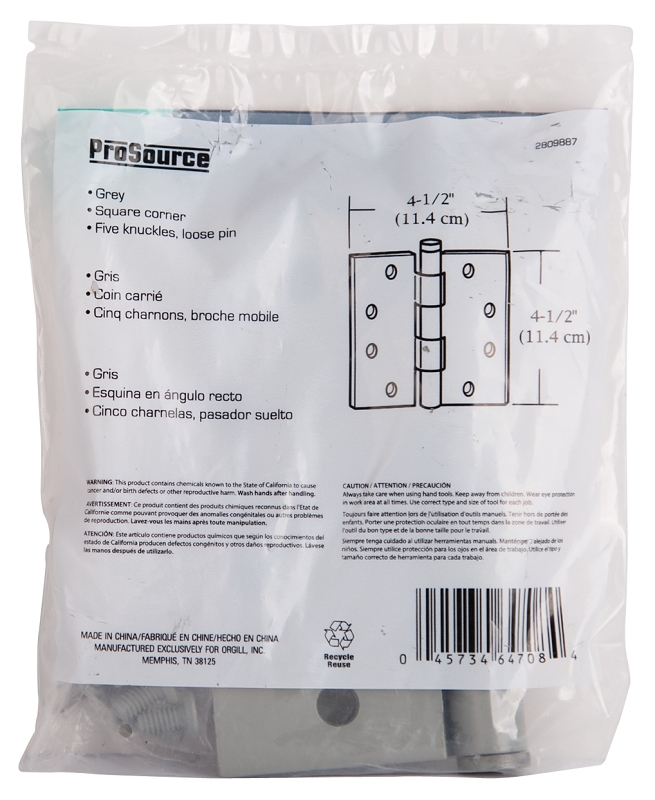

ProSource LR-017-PS Square Corner Door Hinge, Steel, Gray, Loose Pin, 180 deg Range of Motion, Screw Mount Mounting

ProSource

ProSource LR-017-PS Square Corner Door Hinge, Steel, Gray, Loose Pin, 180 deg Range of Motion, Screw Mount Mounting

$7.64$7.64
ProSource LR-017-PS Square Corner Door Hinge, Steel, Gray, Loose Pin, 180 deg Range of Motion, Screw Mount Mounting
  • Color: Gray
  • Dimensions: 4-1/2 x 4-1/2 in
  • Door Leaf Height: 4-1/2 in
  • Door Leaf Thickness: 3.6 mm
  • Door Leaf Width: 2 in
  • Model #: LR-017-PS
  • UPC #: 045734647084
  • SKU: 2809887

Your shopping list will be used for pickup in-store

Product Details

A creaking door at your place, don't get too worked up about it since there is a remedy to that. Those days of creaking or breaking hinges are over with this hinge - the door control hinge you need. It's great for interior and exterior applications. Suitable to use on all non-commercial interior, exterior doors or wood furniture, this corner hinge is the best. With this hinge, you are getting a high-quality fitting. This hinge can hold a light to medium weighted doors. You have to do very little maintenance. Overall, it s well with most types of doors and better with aluminum ones. Once installed, this hinge makes the opening of doors very easy.

Key Features

  • Gray
  • Dimensions: 4-1/2 x 4-1/2
  • Five knuckles, loose pin

Item Specifications

ColorGray
Dimensions4-1/2 x 4-1/2 in
Door Leaf Height4-1/2 in
Door Leaf Thickness3.6 mm
Door Leaf Width2 in
Door Thicknessx
FinishGray
Hole Spacing1-1/4 in
IncludesScrews
Knuckle Diameter8 mm
Knuckle Length22 mm
MaterialSteel
Mounting Hole Diameter8.3 mm
Mounting TypeScrew Mount
Number of Knuckles5
Number of Mounting Holes8
Pin Diameter7.3 mm
Pin TypeLoose
Range of Motion180 deg
