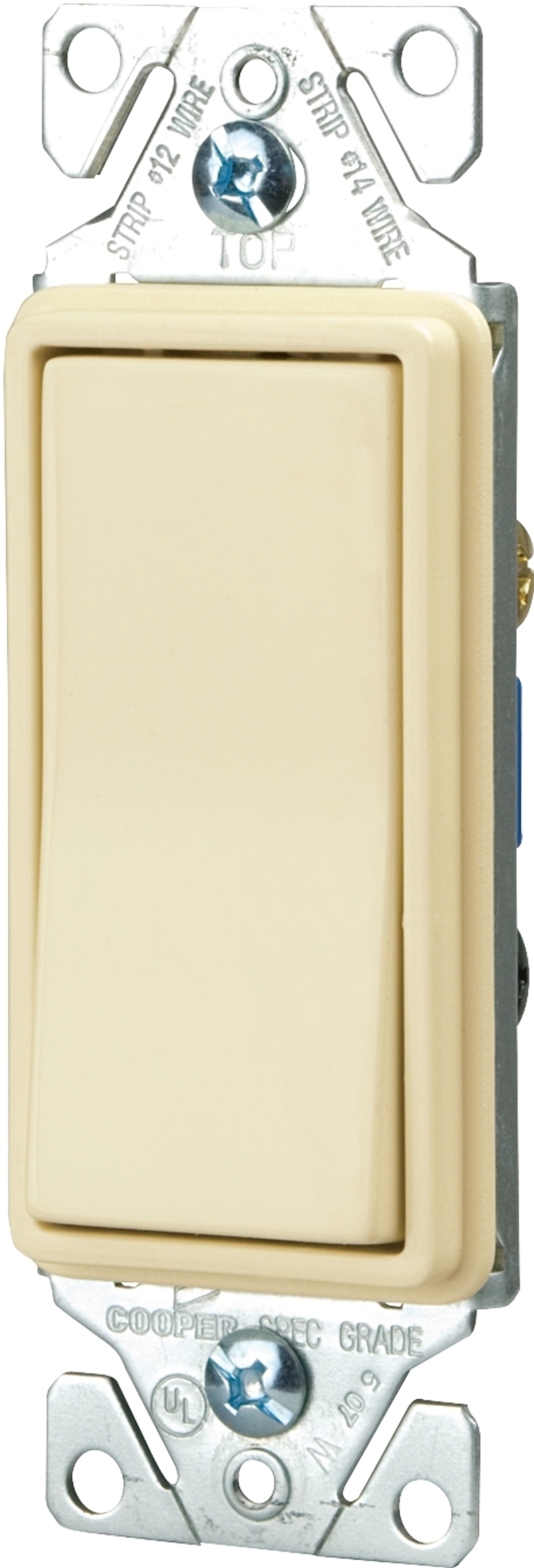

Eaton Wiring Devices 7500 Series 7501V-C Rocker Switch, 15 A, 120/277 V, SPST, Lead Wire Terminal, 2000 V Dielectric

Eaton Wiring Devices

$3.49~~$3.49~~

Color: Ivory
Contact Configuration: SPST
Current Rating: 15 A
Dielectric Strength: 2000 V
Dimensions: 4.19 in L x 1.44 in W x 0.97 in D
Model #: 7501V-C
UPC #: 032664643453
SKU: 9233487

Your shopping list will be used for pickup in-store

Product Details

Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 A, 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL listed, meets all UL20 requirements.

Key Features

Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
Push-in terminals accept #14 AWG solid wire for quick installation
Stippled ground screw terminal standard
Long, broad mounting strap virtually eliminates floating installations
Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility
Lighted switches glow in OFF position
Redesigned paddle for easier actuation and quiet operation

Item Specifications

Color	Ivory
Contact Configuration	SPST
Current Rating	15 A
Dielectric Strength	2000 V
Dimensions	4.19 in L x 1.44 in W x 0.97 in D
Housing Material	Thermoplastic

Includes	(1) Metal Strap
Mounting Type	Strap
Number of Poles	2
Temperature Rating	-20 to 60 deg C
Terminal Type	Lead Wire
Voltage Rating	120/277 V

MORE DETAILS:

Cooper_Industries_7501BK_SP_C_Data_Sheet.pdf
Application: For fluorescent lighting fixtures and a broad variety of applications
